Fleetguard Fuel Filter Komatsu 385 Hitachi EH11005 FS1006 U.S.A America

Advantages

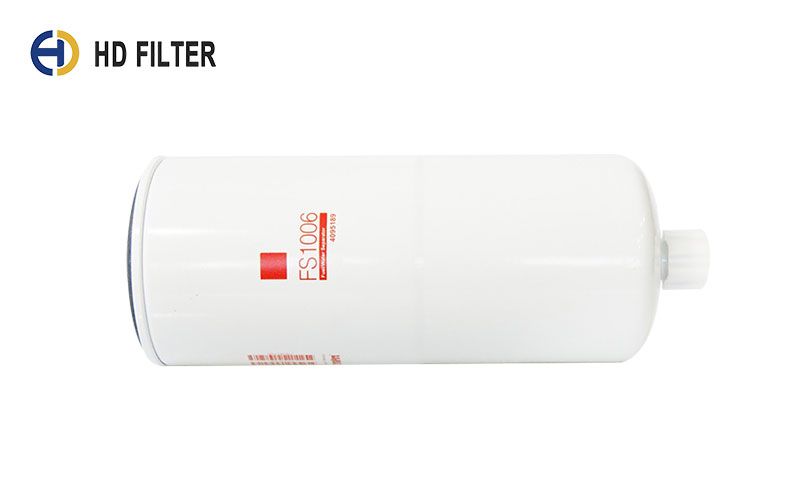

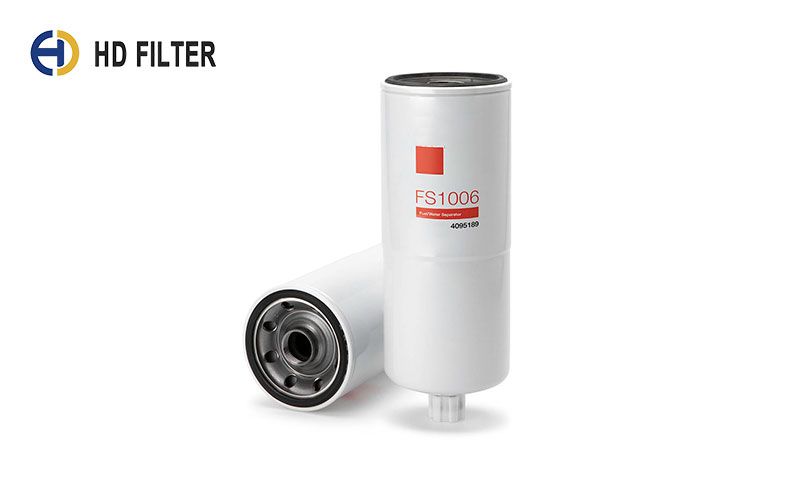

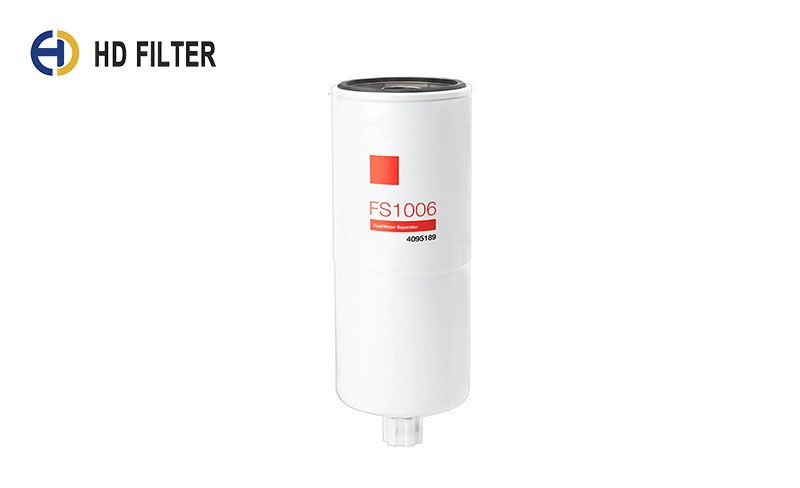

Fleetguard Fuel Filter FS1006 is a high-performance fuel filter mainly used in the fuel system of diesel engines. Its advantages include:

1.High-efficiency filtration performance: FS1006 can effectively remove impurities and particles in fuel, including moisture, iron filings, sand, etc., thereby preventing these pollutants from causing damage to the engine and ensuring clean and efficient operation of the fuel system.

2.Protects the engine: Through high-efficiency filtration, FS1006 can reduce wear and corrosion on the engine's fuel injection system, combustion chamber and other critical components, thereby extending the service life and stability of the engine.

3.Moisture separation function: FS1006 is equipped with a moisture separation function that can effectively remove moisture from fuel. Moisture can cause fuel system corrosion and incomplete engine combustion, so moisture removal is critical to protecting the engine.

4.Reduced Maintenance Frequency: Using the FS1006 reduces the frequency of equipment failures due to fuel contamination, reducing the need for maintenance and repairs, thereby saving maintenance costs and time.

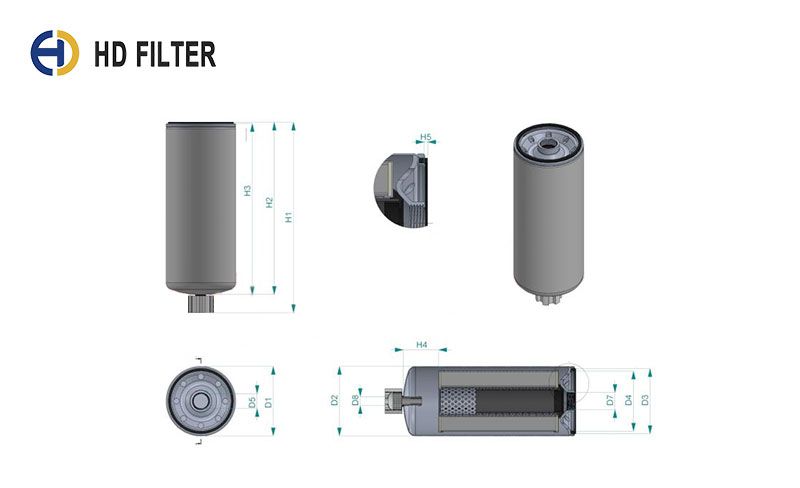

Specification：

D1(mm):  123.0mm

D2(mm):  120.0mm

D3(mm):  113.0mm

H1(mm):  311.0mm

H2(mm):  295.0mm

H3(mm):  293.0mm

Volume(m3):  0.007001m3

Weight(kg):  1.88kg

Description

FFILTER-Fuel(Brand Specific) Product – Brand Specific Fleetguard – Spin On

Product: Fuel filter product

Main Cross Reference: Cummins 3089916, Donaldson P552006, Baldwin BF1262

Details: For Housing use FH21402. For Standard version use FS1216. For Upgrade use FS19870. Main Cross Reference is Cummins 3089916. Emulsified Water Separation – 95 % (95 %). Free Water Separation – 95 % (95 %). Efficiency TWA by SAE J 1985 – 98.7 % (98.7 %). Micron Rating by SAE J 1985 – 10 micron (10 micron). Fleetguard Part Type FS_SPIN. Recommended for Cummins V28, KV38, and KV50 engines Stratapore Media

Compatibility

ATLAS COPCO

QAC 1000QAC 1000 CUDQAC 1250QAC 1250QAC 1450QEC 800

BELAZ

7424275131 751457514575306

CUMMINS

KTA 38-G3KTA 50-G3QSK 23QSK23-G3QSK 45QSK 60

CUMMINS POWER GENERATION

C 1250 D2RC 600 D6CF 700 D2R

EPIROC

MT 65

GOTTWALD

HMK 300HMK 5506

HITACHI

EH 4500EX 1200-5EX 1200-6EX 2500-5EX 5500-5

HYUNDAI

R 1200-9R 1250-9

INTERTEK

1250 KVA800 KVA

KOMATSU

730 E730 E730 E730 E-4730 E - 7730 E - 7730 E-DC830 E830 E830 E830 E-15830 E-15830 E-1 AC830 E-AC830 E-DC930 E930 E-4 SE960 ED 375 A-5D 85 EX-15D 85 PX-15HD 1500-7HD 325-6PC 3000PC 3000PC 4000PC 4000PC 600-6K LCPC 8000-5SA6-D-125E-3WA 470-5WA 480-5

LIEBHERR

R 994 B

PERKINS

4012 TAG

SIMED

1000 KVA1500 KVA
