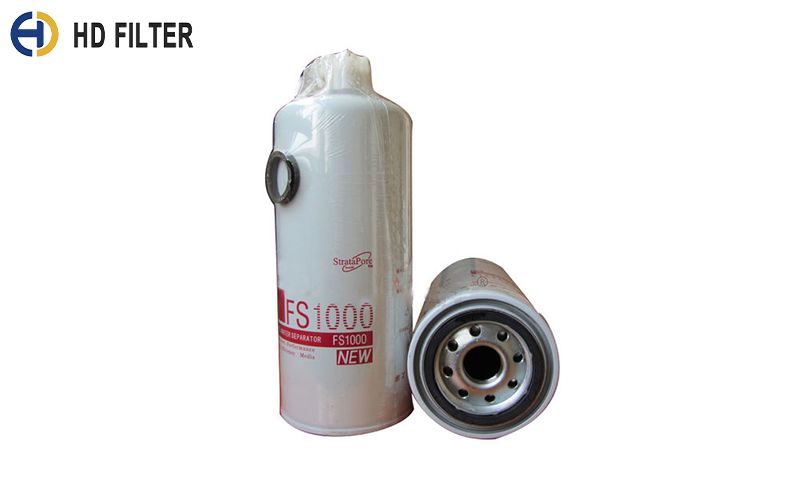

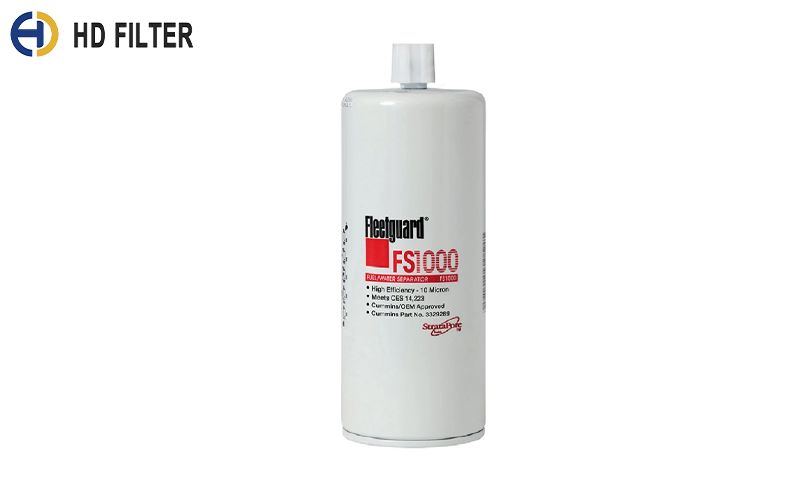

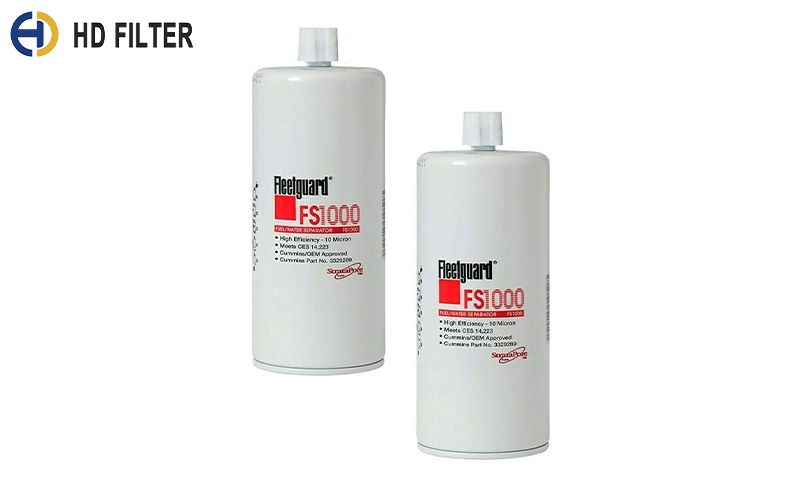

Fleetguard Fuel Filter Caterpillar C11 Cummins M11 FS1000 U.S.A America

Advantages

Fleetguard Fuel Filter FS1000 is a high performance fuel filter with benefits including:

1.High Efficiency Filtration: The FS1000 is designed to efficiently remove solid particles and moisture from fuel. This helps protect the engine from damage by fuel contaminants, thereby increasing engine life and performance.

2.Strong durability: The filter is made of high-pressure and high-temperature resistant materials and can work stably for a long time in harsh working environments.

3.Easy Installation and Maintenance: Designed with user convenience in mind, the FS1000 is typically quick to install and replace, reducing maintenance time and costs.

4.Improve fuel quality: By removing impurities and moisture from the fuel, FS1000 can improve fuel quality and increase combustion efficiency, thereby improving the engine's fuel economy and power output.

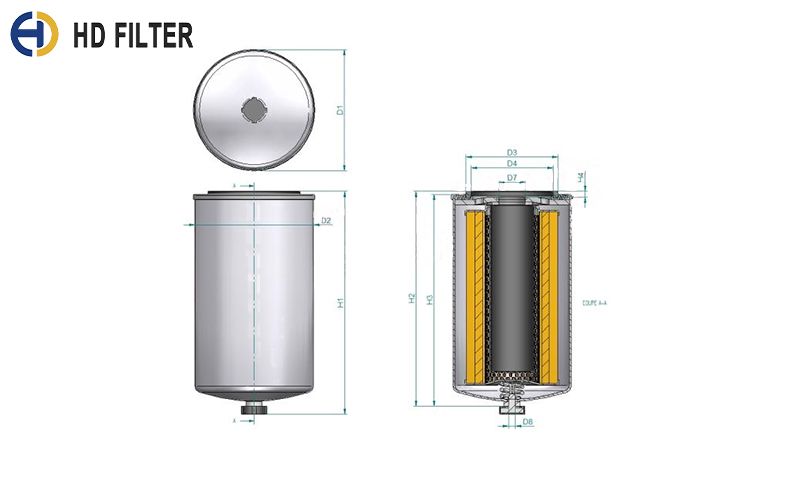

Specification：

D1(mm):  93.0mm

D2(mm):  93.0mm

D3(mm):  72.0mm

H1(mm):  250.0mm

H2(mm):  232.0mm

H3(mm):  230.0mm

Volume(m3):  0.00256m3

Weight(kg):  0.9kg

Description

FILTER-Fuel(Brand Specific) Product – Brand Specific Fleetguard – Spin On

Product:  Spin-on fuel filter

Main Cross Reference:  Cummins 3329289  Donaldson P551000  Baldwin BF1259

Details:  For Short version use FS1001. For Housing use FH22239. For Standard version use FS1212. For Marine version use FS1009. For Service Part use 255622S. Main Cross Reference is Cummins 3329289. Emulsified Water Separation – 95 % (95 %). Free Water Separation – 95 % (95 %). Efficiency TWA by SAE J 1985 – 98.7 % (98.7 %). Micron Rating by SAE J 1985 – 10 micron (10 micron). Fleetguard Part Type FS_SPIN. Required on all Cummins Select and Quantum 19L Engines (Stratapore). Fuel/Water separator filter c/w drain. 10 micron media

Cross Reference

AC DELCO    TP1292

AGCO    72515622

AMERICAN MOTORS CORPORATION    SFF1000

AMERICAN PARTS    95406

ATLAS COPCO    5541709800

BIG A    95431

BLOUNT    10064607

CASE/CASE IH    84557707

CATERPILLAR    10064607

CEDARAPIDS    459300015901

CHINA LOCAL    VF2822

COMPAIR    9826250880001

COOPERS    FSW4140

CUMMINS    3843750

DAF    3329289

DITCH WITCH    5001779

DOOSAN    97400033

EXMAN    SFF1000

FREIGHTLINER    DNP551000

FURUKAWA    3381757H1

HITACHI    E12977622

HYSTER    1515707

HYUNDAI    1SN626001

IMPERIAL    04FS1000

INGERSOLL RAND    57479123

INTERNATIONAL    J329289

JCB    32925968

JOHN DEERE    RE160384

KALMAR    807201962

KAWASAKI    YE3329289

KOBELCO    YN02PU1010P1

KOMATSU    131036H2

KRALINATOR    FS344

LIEBHERR    5614398

LIUGONG    53C0650

MACK    2191P551000

MANITOWOC    4136470

MORBARK    29213450

MTU    X57536400006

NEOPART    NEOFS1000

NEW HOLLAND    84557707

ORENSTEIN & KOPPEL    1478371

PREVOST CAR    19500500

SANY    60205950

SCHWING    83550345

SISU    1273400213

TEREX    15271319

TORQUIP    76194229

VERSATILE    86029143

VMC    FS551000

VME    12977622

VOLVO    12977622

WESTERN STAR TRUCK    170013418

WHITE    170014406

XCMG    800163516

Compatibility

BOMAG

MPH 364-2RS 360

BUCYRUS

RH 120 ERH 120 E

CASAGRANDE

B250 XP-2B275 XP-2

CASE

1221 E921 E921 E T3MX 255MX 285STX 275STX 325

CATERPILLAR

6030 FS6030 FS

CUMMINS

ISMM 11N 14 MN 14 SERIESQSK 19QSM 11

DAF

95.500F 95.530 XF

DOOSAN DAEWOO

DL 400 ADL 420DL 450DL 500MEGA 500 V

ERF

ECS 11.34ECS 11.39ECS 11.41ECS 11.44ECT 11.39 MT/MTL/ST/DB/RDBECT 11.42 MT/MTL/ST/DB/RDBECX 11.34ECX 11.39ECX 11.40ECX 11.44

EUCLID

R 40

FORMATIC

GT 450SUPER G 11

GLEANER

R 72R 75

GROVE

TMS 700 ETMS 700 E07TMS 700 E07TMS 800 E07TMS 800 E07TMS 800 E2TMS 9000 ETMS 9000 ETMS 900 ETMS 900 E07TMS 9100 ETMS 9100 E

HAMMEL

VB 750 D

HIDOW

HW 450

HIMOINSA

HMW 510HMW 550

HITACHI

EX 1800-3

HYUNDAI

HL 780-3AHL 780-7AHL 780-9R 450 LC-7R 450 LC-7AR 480 LC-9R 500 LC-7R 500 LC-7AR 500 LC-9R 520 LC-9

INGERSOLL RAND

1300 SERIESECM 470ECM 580ECM 660

JCB

432 ZXJS 205

KALMAR

DCF 80-45 E6DRF 450-65 S5DRU 450-62S5

KAWASAKI

115 Z V90 Z V-2

KOMATSU

PC 340-7 LCSA 6 D 114 E-2SAA D 114 E-2WA 380-5H

LIEBHERR

R 984 B/C

LIUGONG

CLG 877 IIICLG 888CLG 888CLG 945CLG 948

MANITOWOC

1112222250777888888 SERIE 11999999

MTU

DIVERS

NEW HOLLAND

TG 255TG 285TJ 275TJ 325W 270W 270 B

PLAISANCE EQPT

VARIOTRAC 400VARIOTRAC 440 R

PPM

TFC 45TFC 45TFC 45 SUPER STACKERTFC 45 SUPER STACKER

SENNEBOGEN

850 D860 D

SHAANXI

SX 3254 DR 384 CSX 4184 JX 351 CSX 4254 JX 294 C

SISU

E 11.300E 11.340E 11.380E 11.405E 14.430E 14.480E 14.530

SUNWARD

SWDM 28SWDM 280

TEREX

3345TA 25TA 27TA 30TA 30TA 300TA 45TFC 45TL 420TR 35TR 60

XCMG

LW 900 KNQUY 100QUY 150ZL 80 G
