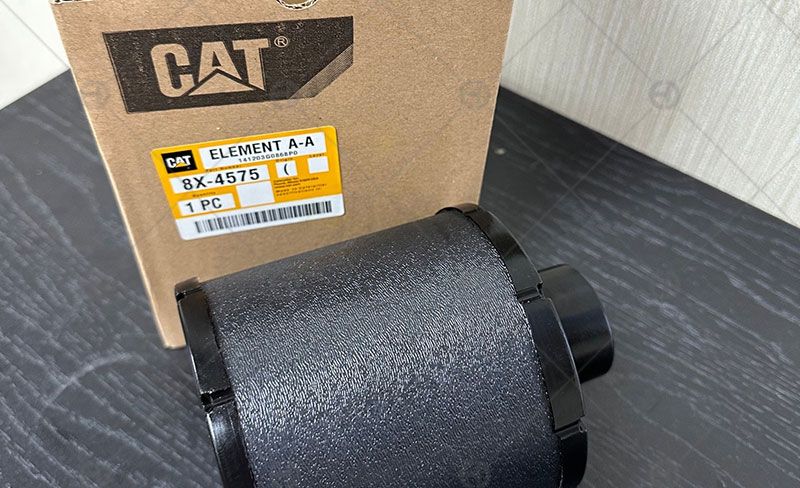

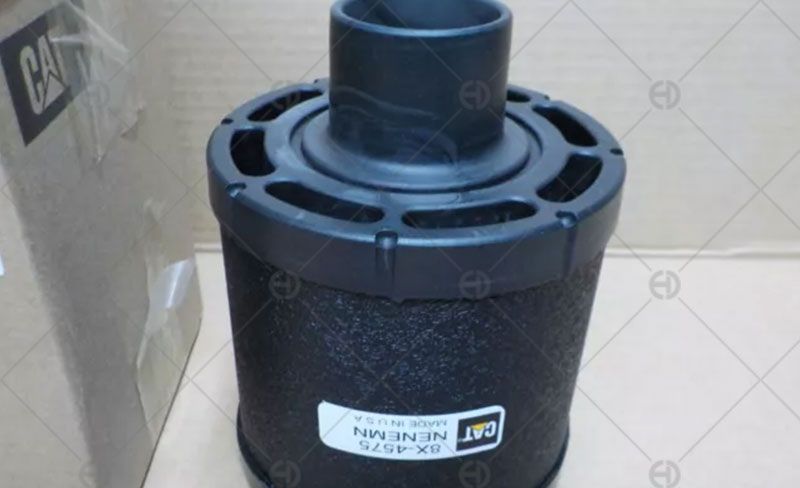

Caterpillar Air Filter 768C 8X-4575 America

Advantages

Highly efficient air filtration capacity: the filter element 8X-4575 has excellent filtration efficacy, which can effectively capture dust, pollutants and other particulate matter in the air and protect the engine from damage caused by these particles.

Long-term durability and reliability: Caterpillar's filter elements are usually made of high-quality materials with good durability and long service life, capable of maintaining stable filtration performance under a variety of harsh environmental conditions.

Adaptability and compatibility: 8X-4575 cartridges are designed to work with specific Caterpillar equipment or engine models, ensuring complete compatibility with the equipment and providing optimum performance and reliability.

Engine protection and efficiency: By effectively filtering out airborne particles, the 8X-4575 cartridge protects critical components inside the engine from wear and contamination, thereby extending the life of the equipment and improving its operating efficiency.

Product Description

Attributes

Outlet Diameter37.59 mm (1.48 inch)

Body Diameter Maximum 116.2 mm (4.57 inch)

Body Length 114.3 mm (4.50 inch)

Efficiency Test Std ISO 5011

Rated Flow LR 1.2 m³/min (42 cfm)

Rated Flow MR 1.6 m³/min (57 cfm)

Rated Flow HR 1.8 m³/min (64 cfm)

Restriction LR 102 mm H2O (4.02 inch H2O)

Restriction MR 152 mm H2O (5.98 inch H2O)

Restriction HR 203 mm H2O (7.99 inch H2O)

Applications

undergrund articulated trucks

ad40 ad45 ad55 ad55b ad60 ad63 ae40

OFF-HIGHWAY TRUCK

69d 768c 769c 769d 770g 770g oem 771c 771d 772b 772g 773b 772g oem 773d 773e 773g 773g 773g lrc 773g oem 773gc 775b 775d 775e 775g 775g lrc 775g oem 776b 776c 776d 777 777b 777c 777d 777e 777f 777g 784b 785 784c 785b 785c 785d 789 789b 789c 793 793b 793c 793d

ENGINE - INDUSTRIAL

G3406

MOTOR GRADER

24 24M

ARTICULATED DUMP TRUCK

735 735 oem 735b 735c 740 740 gc 740b 740c 745 745c d350e ii d400e ii

CROSS REFERENCE.

carquest 88332, donaldson c045001, fleetguard ah19001, hastings af2359, hifi-filter sac045001, luber-finder laf5810, sakura ah7001
